Varenummer: 2595596

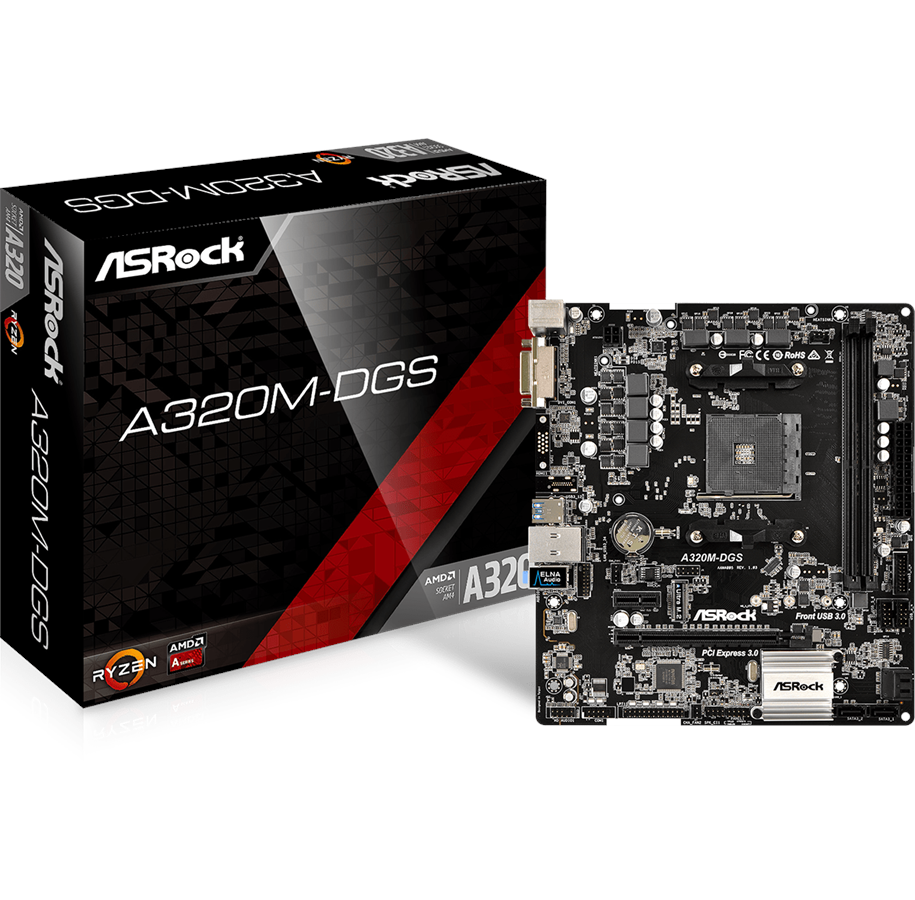

ASRock A320M-DGS Bundkort - AMD A320 - AMD AM4 - DDR4 RAM - Micro-ATX

Bundkort, Micro-ATX, AMD AM4 Socket, AMD A320, PCI-Express x16, Dual DDR4-2666 - 2 x DIMM slots, 4 x SATA-600 / 1 x M.2 NVMe (2242 / 2260 / 2280), USB 3.1 Type A, DVI-D, Realtek 8111GR Gigabit LAN, AMD Radeon R Graphics understøttelse (CPU påkrævet), Realtek ALC887 HD Audio (8-kanaler)

Varen er udgået
Se lignende produkter

Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR Ready motherboards are definitely the one you're looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

RAM

Producent
Varenummer
2595596
Model
A320M-DGS
Ean
4717677333237
Til producentens hjemmeside
Produktbeskrivelse
ASRock A320M-DGS - bundkort - micro ATX - Socket AM4 - AMD A320
Produkttype
Bundkort - micro ATX
Chipsættype
AMD A320
Processor-socket
1 x Socket AM4
Kompatible processorer
Athlon, A serie, Ryzen (understøtter 7th Generation A-serie/Athlon)
Max RAM-størrelse
32 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 1 x Ultra M.2
USB / FireWire porte
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
2 GB
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
AMD A320
Processor-socket
Socket AM4
Max antal processorer
1
Kompatible processorer
Athlon, A serie, Ryzen (understøtter 7th Generation A-serie/Athlon)

Understøttet RAM

Maks. størrelse
32 GB
Teknologi
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur

Grafik

Maks. allokeret RAM-størrelse
2 GB

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8111GR
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 3.0 x16 (x16/x8 tilstand (med AMD Ryzen CPU); x8 tilstand (med AMD 7th Generation A-serie/Athlon CPU))
1 x PCIe 2.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
Interface
1 x PS/2-tastatur/mus
1 x LAN (Gigabit Ethernet)
1 x DVI-D
2 x USB 2.0
4 x USB 3.1 Gen 1
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
4 x USB 2.0 - intern stik
2 x USB 3.1 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
1 x parallel - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, detektion af åben etui
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, 7 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, ASRock VR Ready

Diverse

Udstyr inkluderet
I/O- bagvæg, 1 x M.2 skrue
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock APP Charger, ASRock XFast LAN
Overensstemmelsesstandarder
Plug and Play, FCC, EuP Ready, ErP Ready, ACPI 5.1
Bredde
23.1 cm
Dybde
20.6 cm
