Antenne - Poynting XPOL-24 4X4 5G/LTE MIMO Antenna - A-XPOL-24-V1-01
Varenummer: 3155153

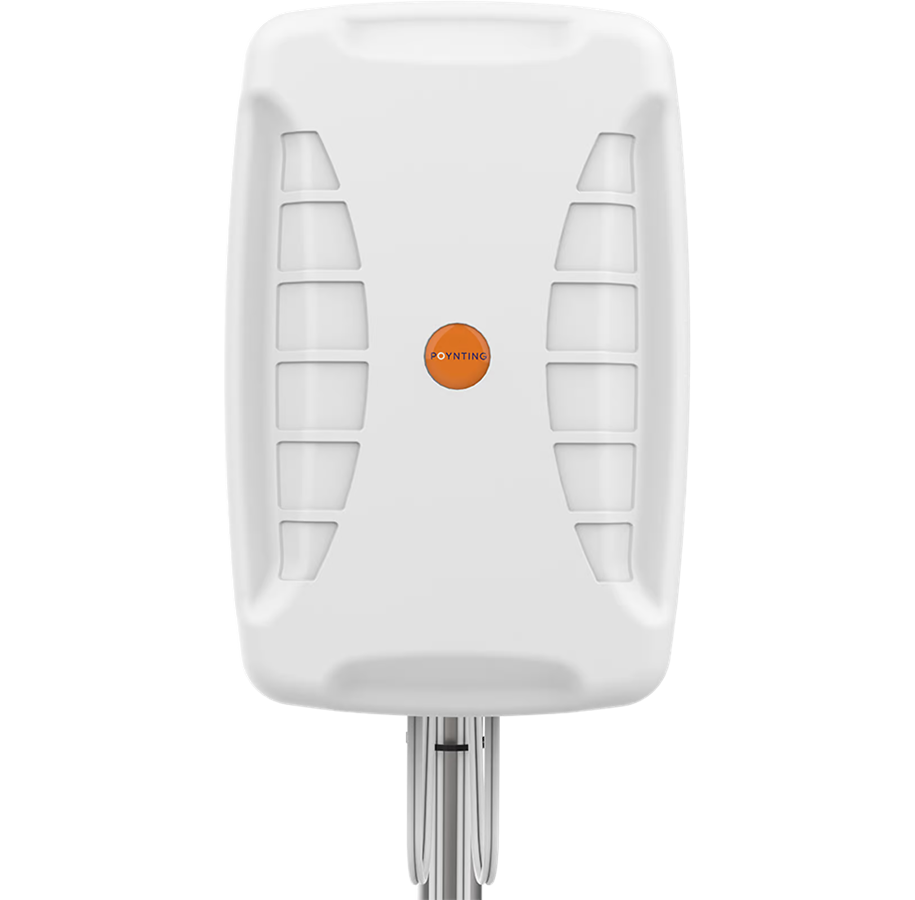

Poynting XPOL-24 4X4 5G/LTE MIMO Antenna

The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is our first ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna. The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.

2.777,00 kr. 2.221,60 kr. ekskl. moms
Gratis fragt (privatkunde)
Bestillingsvare, 6-7 dages levering

Lagerstatus i vores Pick-up Points

  • Aarhus (0 stk.)

    Ikke på lager
  • København (0 stk.)

    Ikke på lager
  • Exceptional high-performance antenna over main 5G/LTE bands
  • New advanced metamaterial technology for high performance
  • Wideband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
  • Four cross-polarised antennas within a single enclosure
  • Weather, dust and vandal resistant enclosure with IP65 raing

Producent
Varenummer
3155153
Model
A-XPOL-24-V1-01
Ean
6009710924693
Til producentens hjemmeside

Ovenstående informationer/specifikationer er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som kan virke misvisende.
