UniFi Managed switch, 48 x Gigabit Ethernet, 2 x SFP & 2 x SFP+, Switching capacity: 140 Gbps, Forwarding Rate: 104.16 Mpps, PoE/PoE+, uden PoE, 1U Rackmount
Detaljer
Producent: UbiquitiTil producentens hjemmeside
www.ubnt.com/unifi-switching/u...| Produktbeskrivelse | Ubiquiti UniFi Switch US-48 - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP |
| Præstation | Non-blocking switching-kapacitet: 70 Gbps Omkoblingskapacitet: 140 Gbps Fremsendelsespræstation: 104,16 Mpps |
| Protokol til fjernadministration | HTTP |
| Effekt | AC 120/230 V (50 - 60 Hz) |
| Dimensioner (B x D x H) | 44.3 cm x 28.6 cm x 4.3 cm |
| Vægt | 3.56 kg |
Generelt | |
|---|---|
| Enhedstype | Switch - 48 porte - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP |
| Præstation | Non-blocking switching-kapacitet: 70 Gbps Omkoblingskapacitet: 140 Gbps Fremsendelsespræstation: 104,16 Mpps |
| Protokol til fjernadministration | HTTP |
| Statusindikatorer | Ports transmissionshastighed, PoE, link/aktivitet |
Ekspansion / Konnektivitet | |
|---|---|
| Interface | 48 x 1000Base-T RJ-45 2 x 1000Base-X SFP 2 x 10GBase-X SFP+ 1 x konsol RJ-45 |
Effekt | |
|---|---|
| Strømenhed | Intern strømforsyning |
| Nødvendig spænding | AC 120/230 V (50 - 60 Hz) |
| Strømforbrug ved drift | 56 Watt |
Diverse | |
|---|---|
| Overensstemmelsesstandarder | IC, FCC, WEEE |
Mål og vægt | |
|---|---|
| Bredde | 44.3 cm |
| Dybde | 28.6 cm |
| Højde | 4.3 cm |
| Vægt | 3.56 kg |
Available with 24 or 48 RJ45 Gigabit ports, the UniFi® Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.
The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‐blocking throughput, the 24‐port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

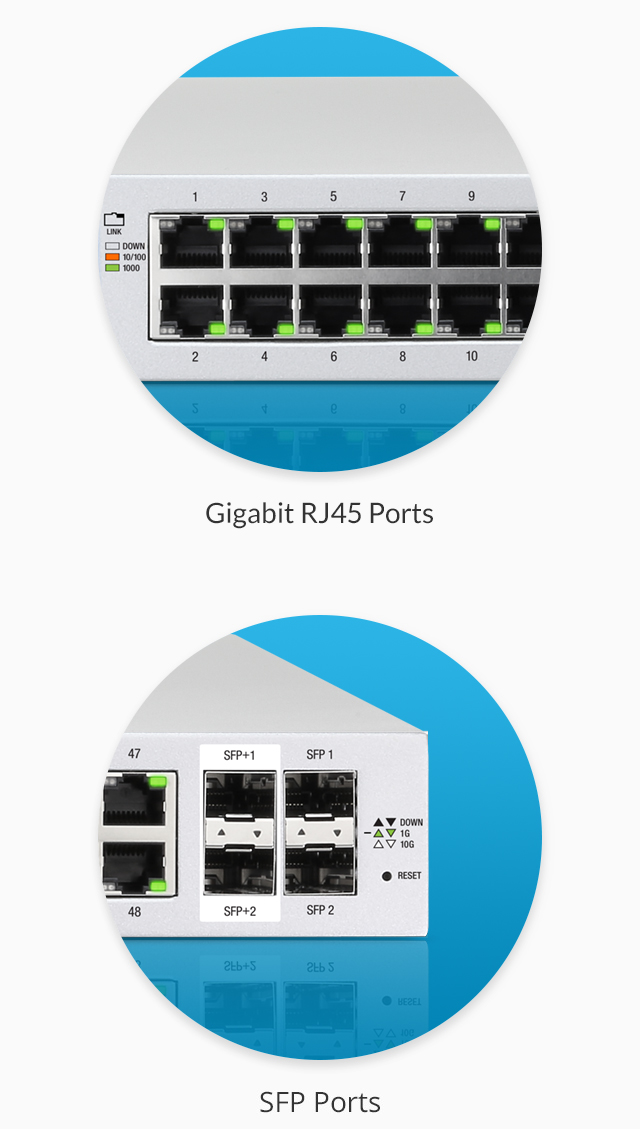

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
For its total, non‐blocking throughput, the 24‐port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
US-24 | US-48 | |
|---|---|---|
| Total Non-Blocking Throughput | 26 Bbps | 70 Gbps |
| Gigabit RJ45 Ports | 24 | 48 |
| SFP+ Ports | N/A | 2 |
| SFP Ports | 2 | 2 |
| Switching Capacity | 52 Gbps | 140 Gbps |
